Velodyne Acoustics SPL-X

The subwoofer flagship from Velodyne Acoustics

The SPL-X subwoofer always provides the decisive low-frequency foundation in the system – and is immediately ready for use thanks to numerous presets. Thanks to XLR and RCA as well as high-level inputs, the SPL-X can be seamlessly integrated into any audio environment. Whether in the studio, home theater or living room: you can rely on the bass of the SPL-X series.

With the SPL-X series, Velodyne Acoustics redefines the subwoofer flagship and continues on the path of SPL Ultra and the legendary DD series

The high-end subwoofer series combines pioneering DSP technology, a powerful Class D power amplifier and carbon drivers with a fully parametric 6-band EQ. The automatic room calibration ensures linear, rich bass in every room and avoids distortion.

The SPL-X subwoofers deliver pure performance right down into the frequency range – with up to 1800 watts RMS and massive 4-inch voice coils on the larger models. The flagship drivers with dual-spider suspension and vented baskets guarantee maximum control, even at extreme levels. The volume, crossover frequency, phase and EQ can be conveniently controlled from the listening position via the free app.

The features

  • Powerful Class D amplifiers with up to 1800 W RMS for precise bass reproduction
  • Heavy-duty carbon drivers with 3- or 4-inch voice coils
  • DSP-controlled AutoEQ function with microphone for perfect room adjustment

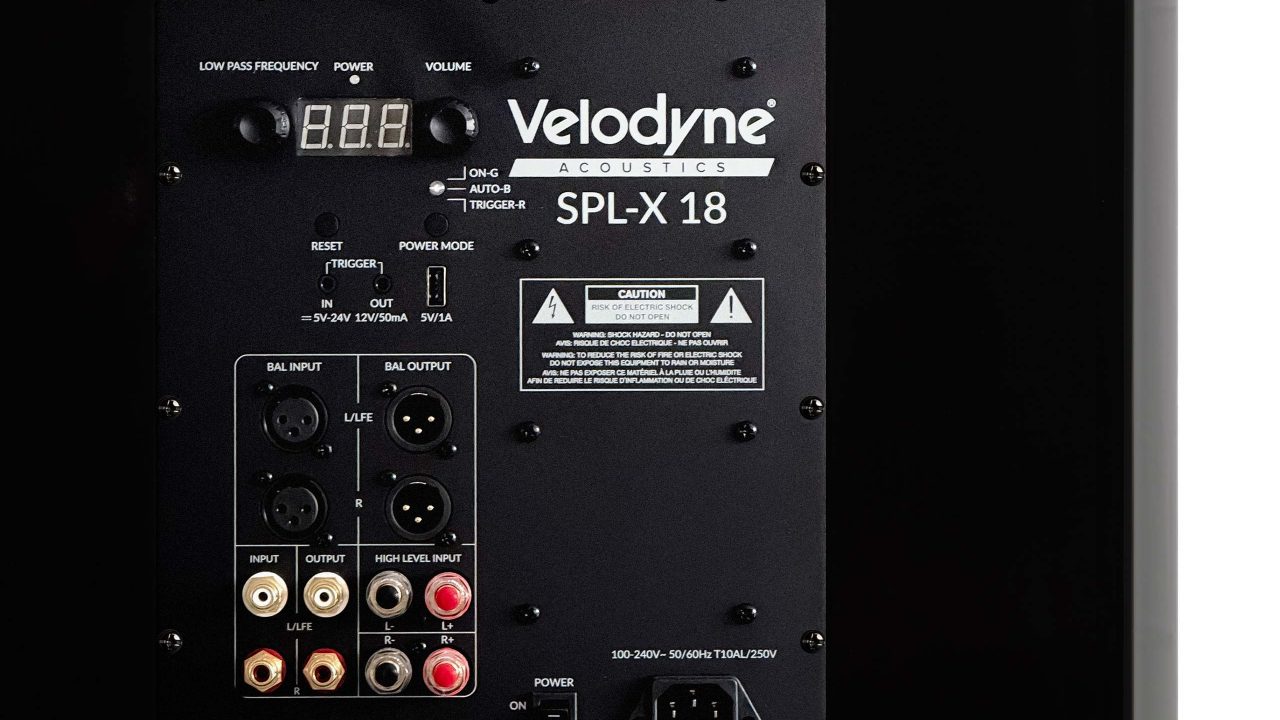

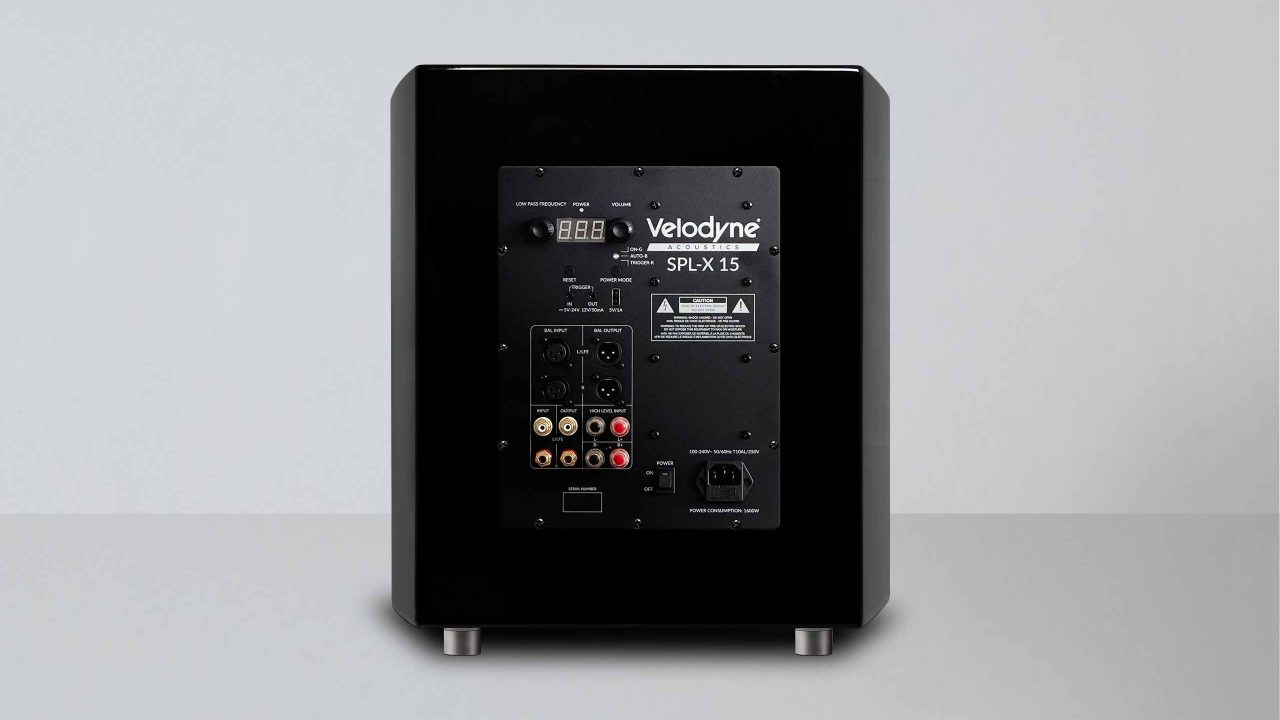

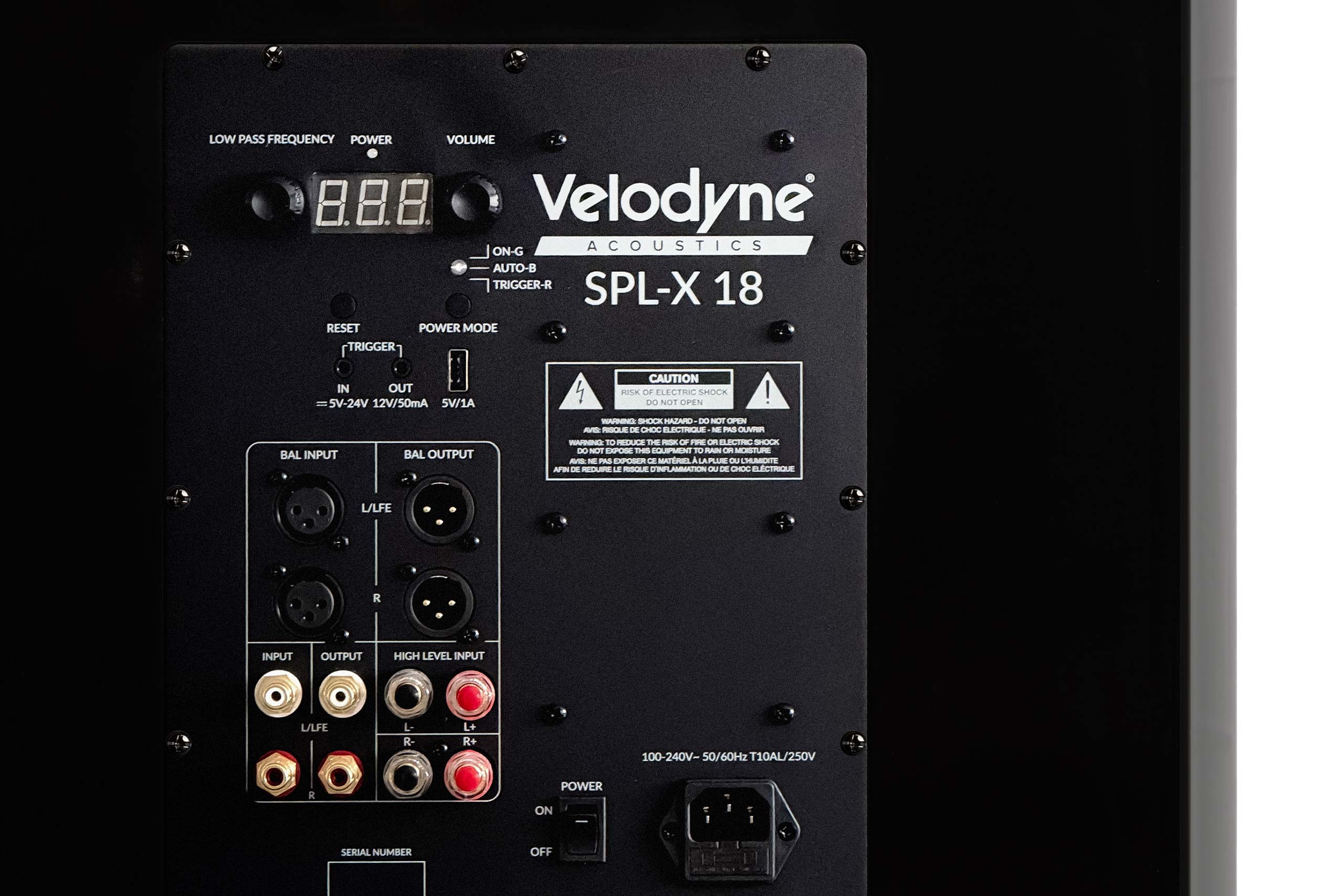

  • RCA LFE, RCA stereo, XLR LFE, XLR stereo and high-level inputs
  • App control with 6-band EQ, subsonic filter, high-pass filter and presets

The closed subwoofers of the SPL-X series

are the result of decades of research into uncompromising low frequency sound. With the best features, smart operation and massive sound power, they are rightly at the top of the Velodyne Acoustics product world.

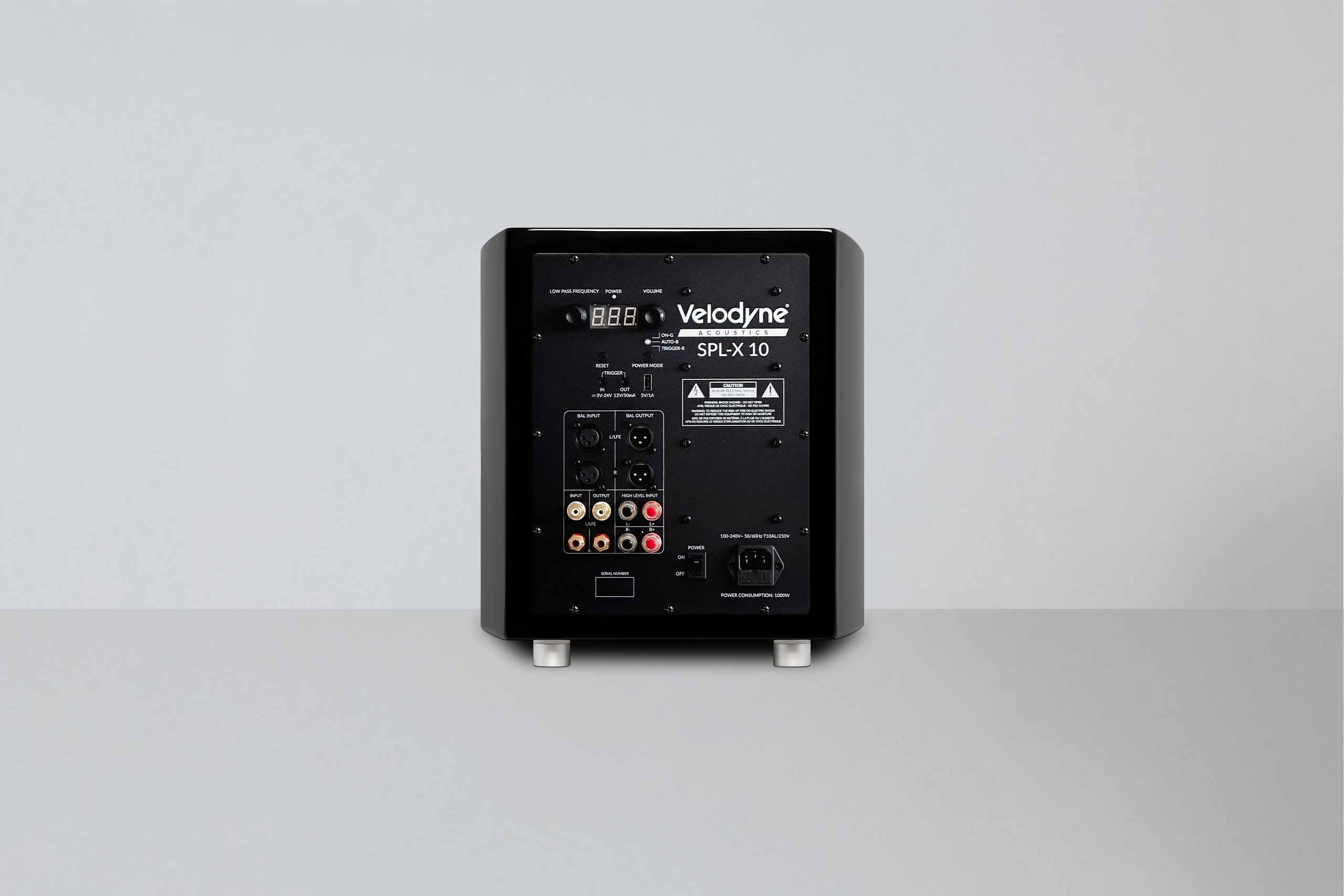

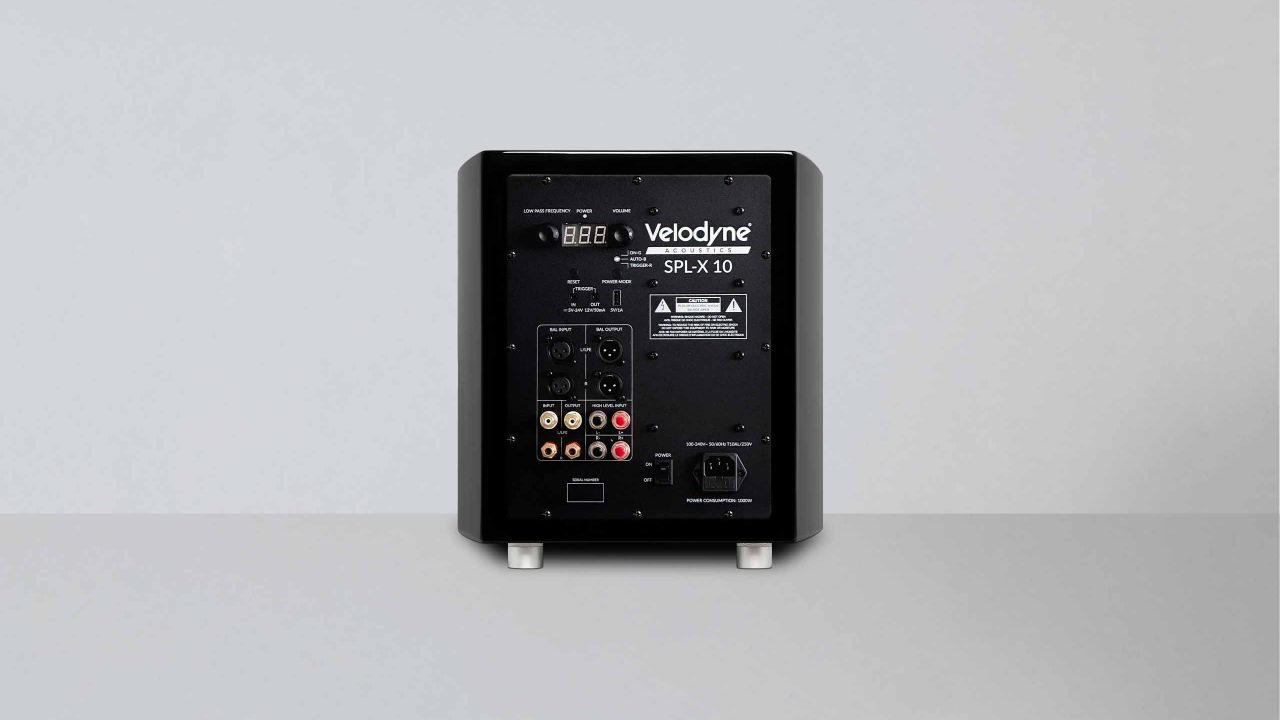

Woofer 10″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider
Four-layer 3″/76mm voice coil
Triple ferrite magnet system
Housing HDF closed, reinforced construction
Amplifier Class D 1000W RMS / 1500W Peak
Frequency response ±10 dB: 18-300 Hz
±3 dB: 28-250 Hz
Low-pass filter 30-200 Hz adjustable, 12/24/36/48 dB/octave
Delay Adjustable 0-500 ms
Inputs RCA Stereo / LFE
XLR Stereo / LFE
High level stereo
Outputs RCA Stereo / LFE
XLR Stereo / LFE
Cover Black fabric grille, MDF frame
Auto power-on Yes, sensitivity adjustable
Power switch Auto / Trigger / On
Voltage 115V – 230V
Dimensions (WxHxD) 360 x 340 x 440 mm
Weight 30 kg
Shipping weight 33 kg

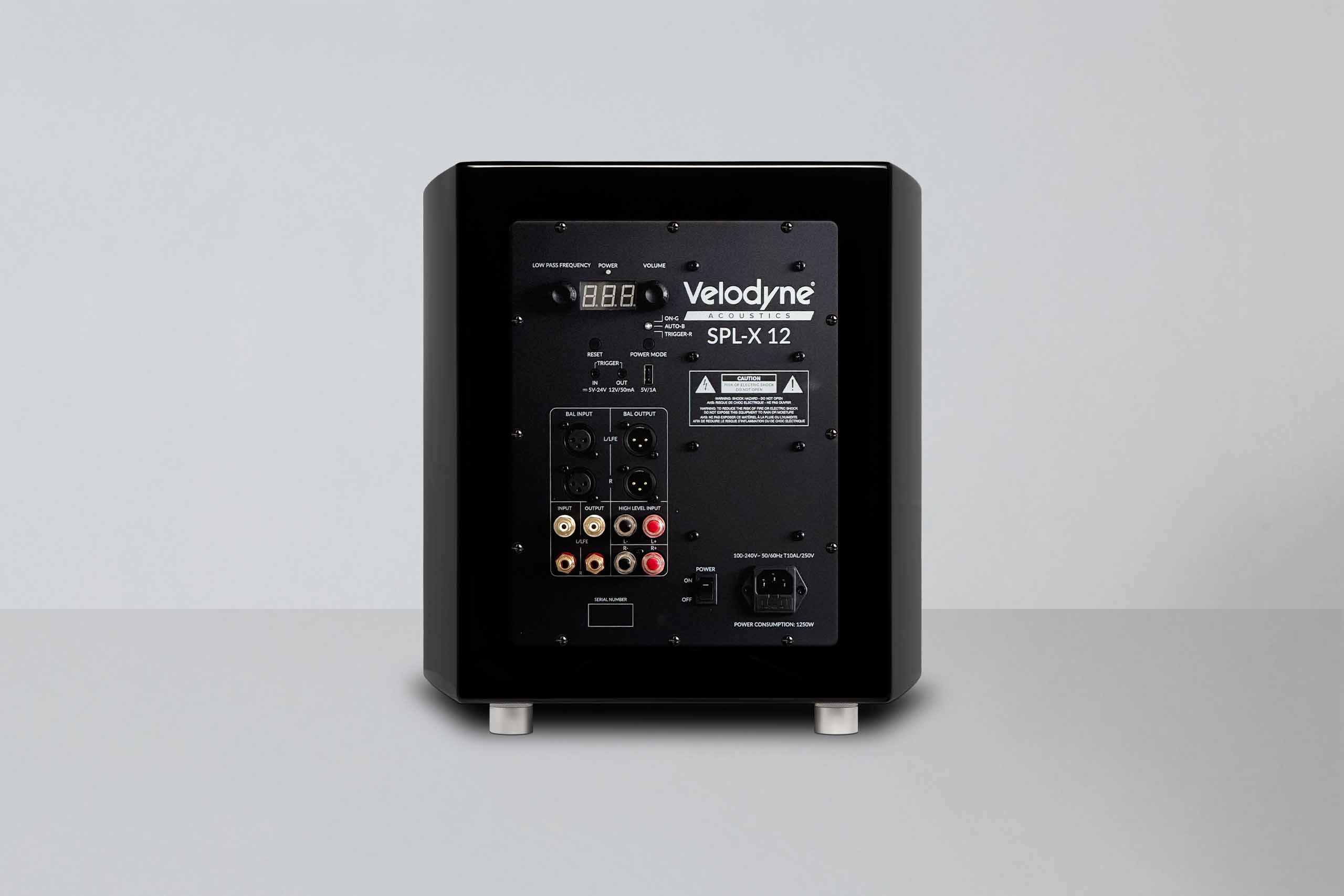

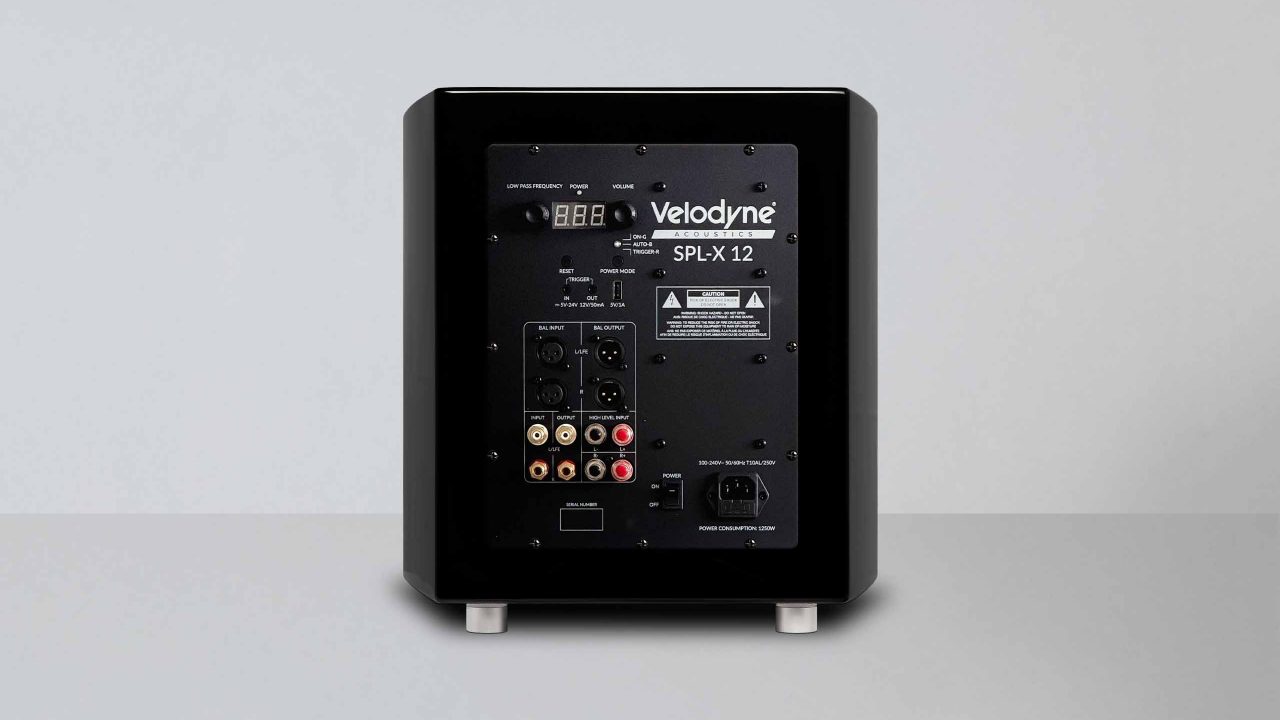

Woofer 12″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider
Four-layer 4″/102mm voice coil
Triple ferrite magnet system
Housing HDF closed, reinforced construction
Amplifier Class D 1200W RMS / 1700W Peak
Frequency response ±10 dB: 15-280 Hz
±3 dB: 25-200 Hz
Low-pass filter 30-200 Hz adjustable, 12/24/36/48 dB/octave
Delay Adjustable 0-500 ms
Inputs RCA Stereo / LFE
XLR Stereo / LFE
High level stereo
Outputs RCA Stereo / LFE
XLR Stereo / LFE
Cover Black fabric grille, MDF frame
Auto power-on Yes, sensitivity adjustable
Power switch On / Auto / Trigger
Voltage 115V – 230V
Dimensions (WxHxD) 380 x 400 x 480 mm
Weight 35 kg
Shipping weight 40 kg

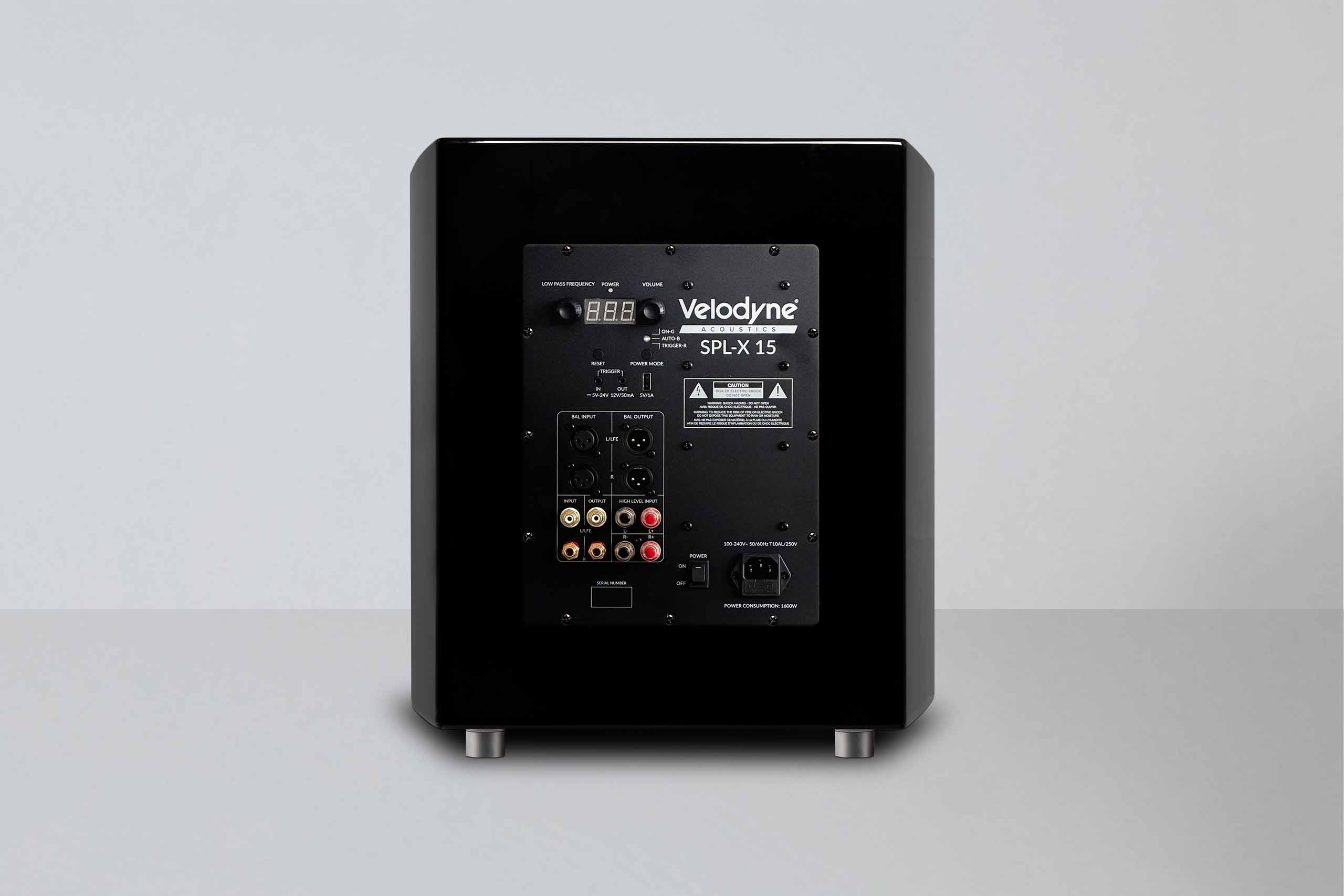

Woofer 15″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider
Four-layer 4″/102mm voice coil
Triple ferrite magnet system
Housing HDF closed, reinforced construction
Amplifier Class D 1500W RMS / 2000W Peak
Frequency response ±10 dB: 15-250 Hz
±3 dB: 22-180 Hz
Low-pass filter 30-200 Hz adjustable, 12/24/36/48 dB/octave
Delay Adjustable 0-500 ms
Inputs RCA Stereo / LFE
XLR Stereo / LFE
High level stereo
Outputs RCA Stereo / LFE
XLR Stereo / LFE
Cover Black fabric grille, MDF frame
Auto power-on Yes, sensitivity adjustable
Power switch On / Auto / Trigger
Voltage 115V – 230V
Dimensions (WxHxD) 470 x 470 x 580 mm
Weight 45 kg
Shipping weight 50 kg

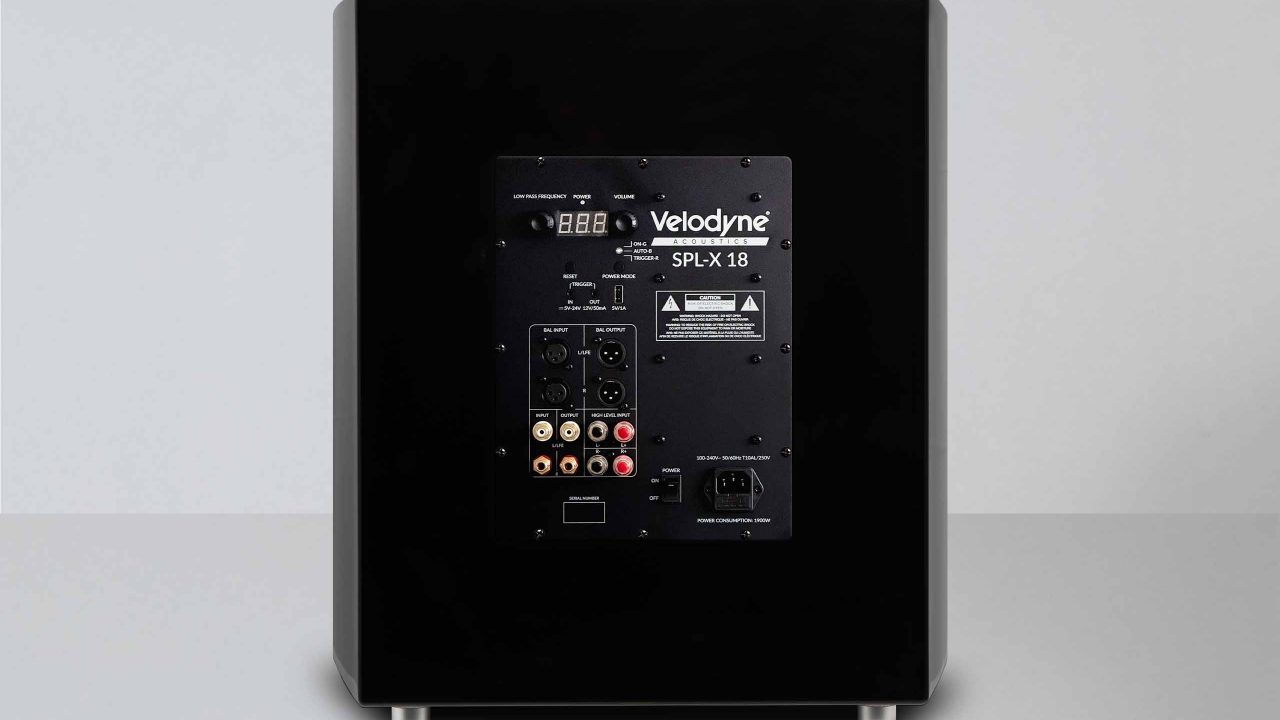

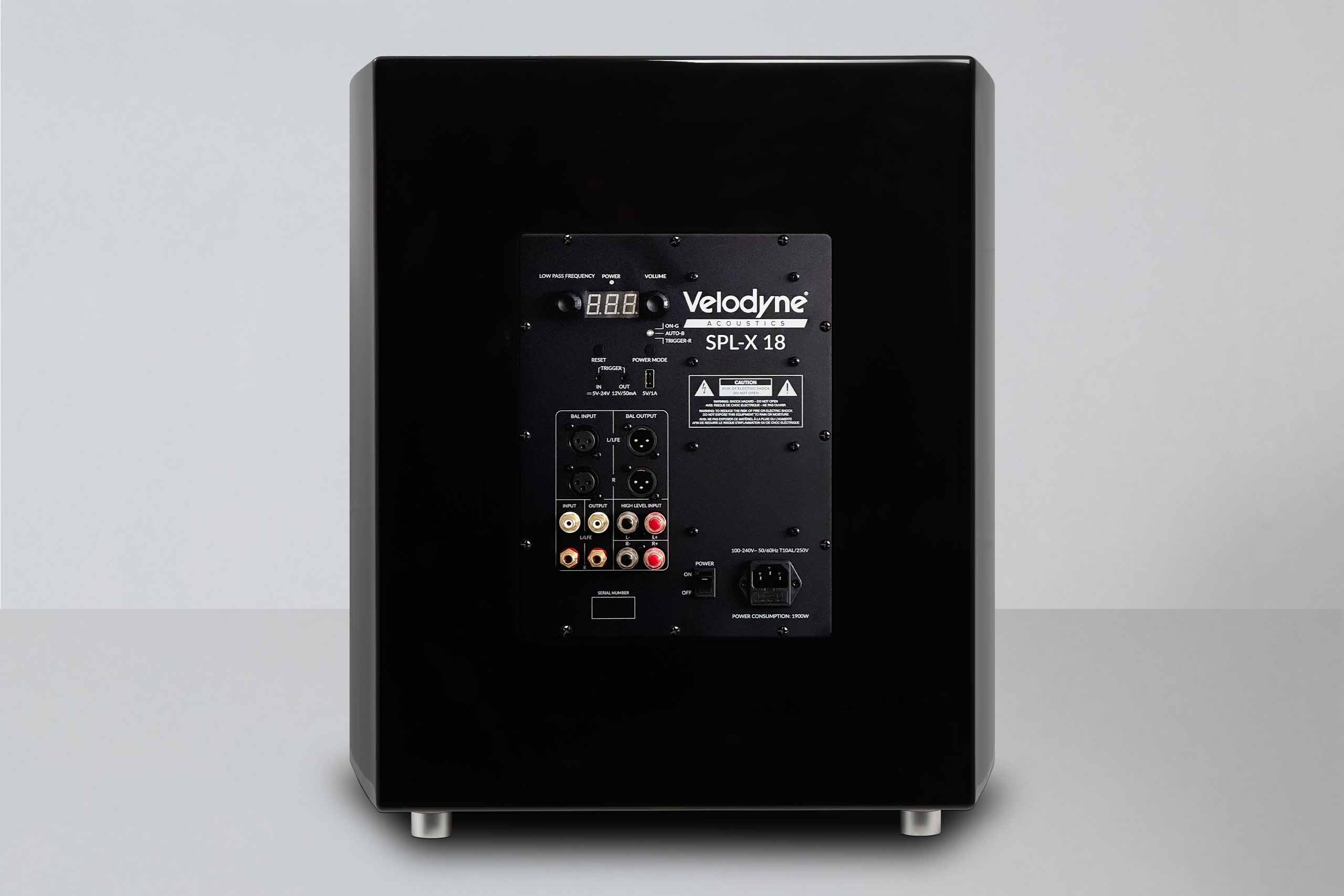

Woofer 18″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider
Four-layer 4″/102mm voice coil
Triple ferrite magnet system
Housing HDF closed, reinforced construction
Amplifier Class D 1800W RMS / 2500W Peak
Frequency response ±10 dB: 13-220 Hz
±3 dB: 20-180 Hz
Low-pass filter 30-200 Hz adjustable, 12/24/36/48 dB/octave
Delay Adjustable 0-500 ms
Inputs RCA Stereo / LFE
XLR Stereo / LFE
High level stereo
Outputs RCA Stereo / LFE
XLR Stereo / LFE
Cover Black fabric grille, MDF frame
Auto power-on Yes, sensitivity adjustable
Power switch On / Auto / Trigger
Voltage 115V – 230V
Dimensions (WxHxD) 550 x 560 x 620 mm
Weight 55 kg
Shipping weight 62 kg
Another “X-factor” from Velodyne Acoustics: the Hamburg-based subwoofer specialist is relaunching the SPL series. The SPL-X models come with the latest technology and interesting app features. In the world’s first test, AV-Magazin checked how well the “small” SPL-X 10 complements a stereo setup.
